Direct twisting + precision Winding  For PP multifilament and tape yarns

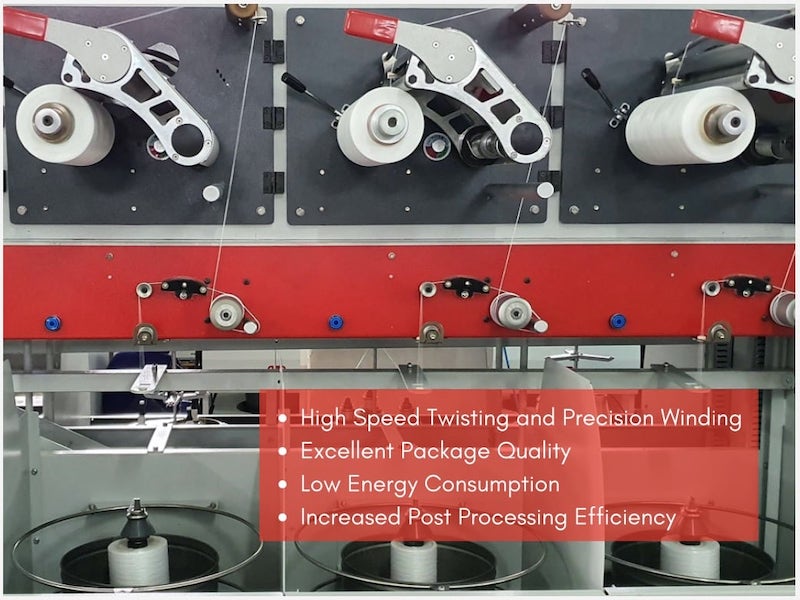

MEERA’s direct twisting + precision winding is a hybrid model made for direct twisting of PP tape, raffia and multifilament , yarns any sensitive yarns with precision winding .

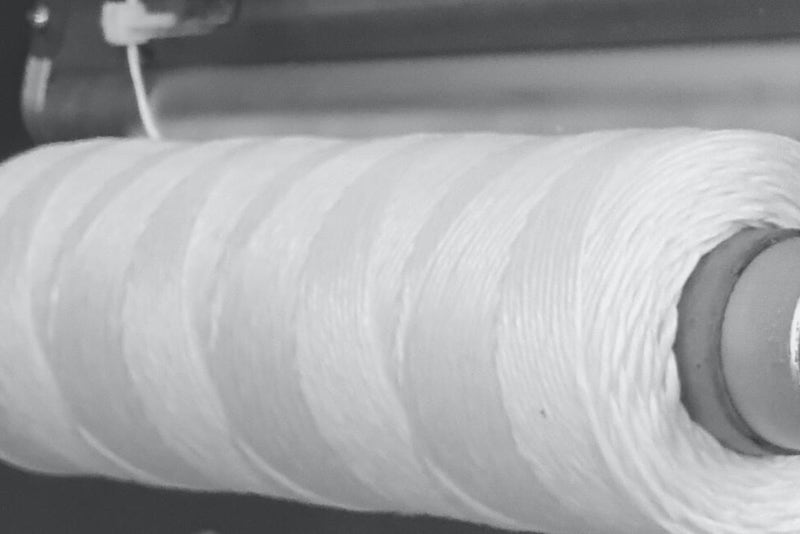

Yarn produces are with exceptional quality, high package density achieved with high-speed precision winding ensuring top performance in post processes.

Features
– Suitable yarn
Fibrillated, Non Fibrillated PP tapes, Multi filament yarn made from PA, PES, PP, PE, Aramid etc…

mena-carpet-news-banner-download-free
Advertisement

– Suitable application
Sewing yarn, technical textiles, artificial grass, baler twin, etc…

– Design features
Modular design, individual motor and meter counting central control system with Recipe management, Safty features …

– Precision winding
Constant tape tension, adjustable spring pressure mechanism, variable pressure for dampening device , precise winding ratio , preset length, LED indication …


PP Tapes, Raffia and multifilament

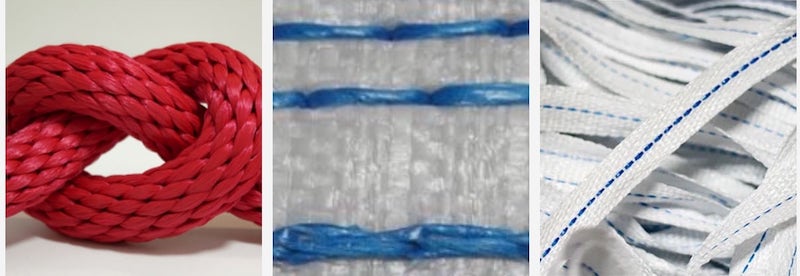

Application:

  • Sewing
  • Slings
  • Twines
  • Braid ropes
  • Webbing
  • Nets
  • Straps
  • Filler Cords


Techical Data

  • Pot diameter
    260 mm / 300 mm
  • Denier range
    1.000 – 20.000
  • Winding Type & speed (Mechanical)
    Precision winding with 150-250 m/min
  • Winding ratio setting
    Mechanical with up to 32 crossing ratios
  • Max.package diameter
    300 mm
  • Max. Length of traverse
    250 mm
  • Max. Tube / bobbin core length
    300 mm
  • Bobin core / tube inner diameter
    26-110 mm
  • Tape width range
    1.8 – 6.0 mm
  • Frame
    260 mm – double-sided section with 4 spindles each side
    300 mm – double-sided section with 3 spindles each side
  • Gauge
    600-900
  • Spindle Speed
    6000 RPM
  • TPM / TPI
    20 – 150 TPM , 0.5 – 4 TPI
  • Take-up tube type
    Parallel cylindrical, conical, tube less
  • Oiling Device
    Optional
